ホーム /製品/自動ケースエレクター/Full Automatic GARMENT YUPACK High-speed Box Erector For Cardboard Box Case

Full Automatic GARMENT YUPACK High-speed Box Erector For Cardboard Box Case

1 Set
MOQ
$12,000.00(>=1 Sets)
価格
Full Automatic GARMENT YUPACK High-speed Box Erector For Cardboard Box Case
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 Year, 12 Months
Type: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: United States
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC
Condition: New
Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type: Cartons, case, Box
Packaging Material: Plastic, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/50HZ
Power: 2KW
Weight: 1000kg
Dimension(L*W*H): L2372*W1210*H1820mm
Key Selling Points: Long Service Life
After-sales Service Provided: Engineers available to service machinery overseas, Online support
Air supply: 6-7kg
Conveyor speed: 25boxes/min
Tape width: 48/60/75mm*L1000mm
After Warranty Service: Video technical support, Online support
Local Service Location: United States
証明: CE Certificate
基本情報
証明: CE Certificate
お支払配送条件
Packaging Details: standard sea-worthy wooden case
Supply Ability: 50 Set/Sets per Month
製品の説明
Product Description

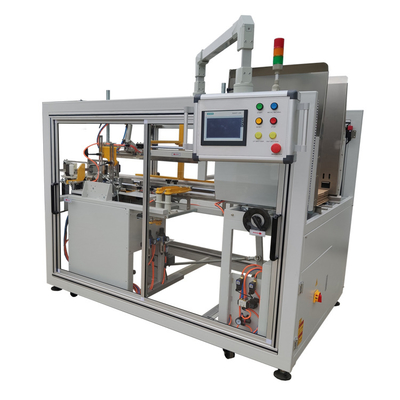

YUPACK Fully Automatic High-speed Box Erector for Cardboard Carton Case.

YPK-4025 high speed Case Erector Machine is a horizontal box unpacking and bottom folding machine, which adopts the up-suction box erector method, can finish the box unpacking with high quality and high efficiency, can open 25 boxes per minute, the efficiency is higher than the same type of box unpacking machine, more used in the food industry.
Product Paramenters
Model
YPK-4025
Power
2KW
Speed
20-25 cartons/min
Voltage
380V 50HZ 3P
Tape width
48-72mm(alternative)
Air supply
5kg/cm2
Table Height
950mm
Machine dimension
L2372mm*W1210mm*H1820mm
Weight
1000kg
Applicable Carton
L+W ≤ 900mm; W ≤ 400mm; H+1/2W ≤ 530mm; 1/2W ≤ 200mm
carton size
L220-420*W180-280*H100-370mm
Product Advantages

Main characteristics

* PLC control,more stable operation.Reasonable design,synchronous drawing forming,fold the bottom and the back cover a synchronous forming. * Compact size, precision mechanical properties and durability, vibration free operation, stable performance and long service life, high efficiency. * Automatically alarm in the absence of tape and carton. * Tape bonding bottom,clean,accurate,touch lightly. * Assembled blade protection device,avoid accidentally stabbing during operation.
Custom Options
Our workshop
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. Such as automatic carton packing line, shrinking wrapping line, fully automatic pallet strapping line, conveyor system and soon......
Ausense main brand is YUPACK, All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
