Automatic Food Carton Box Guling Machine/Corrugated Boxes Folding Gluing Machine/Carton Boxing Folder Gluer Machine

1 Set
MOQ
$12,000.00(1 - 2 Sets) $11,800.00(>=3 Sets)
価格
Automatic Food Carton Box Guling Machine/Corrugated Boxes Folding Gluing Machine/Carton Boxing Folder Gluer Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Type: Gluing Machine
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Energy & Mining
Showroom Location: Egypt, Turkey, Italy, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazak
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Bearing, Gearbox
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Film, case
Packaging Material: Plastic, Metal
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V
Dimension(L*W*H): L12500 X W3400 X H1600
Weight: 6.5 KG
Warranty: 1 Year
Key Selling Points: Long Service Life
Product name: Automatic Carton Box Folder Gluer
Function: Gluing Corrugated Carton Board
基本情報
お支払配送条件
Packaging Details: Common packing PE film wooden case container or as customer's demands
Supply Ability: 350 Set/Sets per Quarter
製品の説明
Product Description

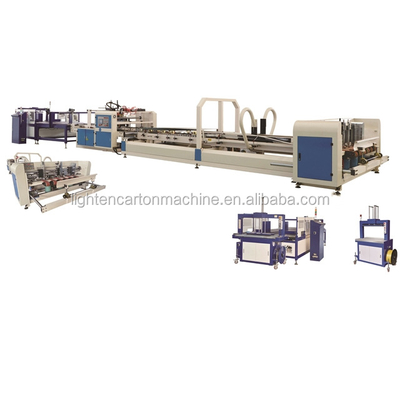

Automatic corrugated cardboard folding gluing machine

This machine can achieve whole computer adjustment for feeder unit ,gluer unit  and folder unit , just enter three data on the Touch Screen( Length, Width, Height size ) , the machine can automatic adjustment to the exact position.
Through PLC programme or adjustment button to setting ,which can meet any different operation habit.
The average speed of gluing box is 8000-10000pcs / hour, speed is very fast , greatly improve production efficiency.

Product Paramenters
Model
QF- 2400
QF-2600
QF-2800
Max. feeding paperboard size (mm)
1200*2400
1400*2600
1400*2800
Min. feeding paperboard size (mm)
300*900
300 * 900
300 * 900
Power required
12 kw 380V 3phase 50HZ
12 kw 380V 3phase 50HZ
12 kw 380V 3phase 50HZ
Paperboard thickness
3 or 5 layer cardboard
3 or 5 layer cardboard
3 or 5 layer cardboard
Control way
PLC touch screen
PLC touch screen
PLC touch screen
Machine weight
5.5 tons
6.5 tons
6.5 tons
Dimensions
L11000 X W3000 X H1600
L12500 X W3200 X H1600
L12500 X W3400 X H1600
Max working speed
180m/min
180m/min
180m/min
Products Description

Feeding section

1:High quality and stability 8 feeding belts are made of Taiwan
2:Vacuum suction feeding system is good at adapting the curved paperboard
3: Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.

The gluer section

1.Simple structure and high reliability, glue quantity adjustable, cleaning easily.
2. Stainless steel glue wheel adopted, long life and saving glue cost
3.Improved quality rubber belt adopted, automatic folding.
4.with paperboard rectify device and creasing rectify device.
5.The Folder belts adopt Germany's force and Switzerland brand

Title goes here.

1. Stacking and counting are simple and reliable.
2. Digital control, operation easily and reliable, No-stop put in data and automatic counting.
3. With rectification function.
4. Paperboard counting and put out by pneumatic, stable and quickly.
5. The machine functions by wireless remote control, carton size to adjust the speed quick, convenient.
6. Counter ejector section controls by touch screen, able to set up base carton number and push out carton number, working speed, production counting able to setup through touch screen.
No
Name
Brand
1
Touching screen
SEIMENS GERMANY
2
PLC
SEIMENS GERMANY
3
Inverter
SEIMENS GERMANY
4
Relay
SEIMENS GERMANY
5
Photo switch
Hugong, China
6
Switch power
Meanwell , Taiwan
7
Thermal Overload relay
SEIMENS GERMANY
8
Breaker
SEIMENS GERMANY
9
Travel switch
CHINT, China
10
Contactor
SEIMENS GERMANY
11
Button
SCHNIDER FRANCE
Optional
Base on need of customer can otional different kinds of bundling machine together to work.The bundling machine can be divided into PE or PP bundle belt bundling machine.It depends on customers requirement.
Product packaging
FAQ
1. Q: Are you a factory or trading company?
 A: We are a company owned our factory which is specialized in the production of various kind of carton equipment. (With export license)
 2. Q: How can I visit your factory?
A: We can pick you up if you need, welcome to visit our factory.
 3. Q: What are your products?
 A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, creasing and die cutting
machine,folder gluer,flute laminator,stitching&strapping machine and other corrugated cardboard production equipments.
 4. Q: How does your factory do regarding quality controlling?
A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose, providing the products with excellent quality, professional technology. Always attach great importance to quality controlling from the very beginning to the very end.
 a. All raw material we used are environmental-friendly.
 b. Skillful workers care every detail in handling the producing and packing process.
c. Quality control department especially responsible for quality in each process.
 5. Q: How is the evaluation of the products?
A: Products are distributed in Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enterprise reputation get the high praise at home and aboard.
 6. Q: What is the payment term?
A: 30% deposit will be paid within 3 days after the contract is signed, and the remaining 70% will be paid before shipment.
Contact information
Mobile/Whatsapp/Wechat:
+86 18513640900
Email: colin@lightenmachine.com
Facebook: Colin Zhang

Professional carton machine manufacturer&exporter
---30 Year experience --- CE&ISO certificate
