Economic Full Automatic Vertical Food Carton Case Erector For Cardboard Box

1.0 Sets
MOQ
$5,500.00(1 - 2 Sets) $5,000.00(3 - 5 Sets) $4,800.00(6 - 9 Sets) $4,300.00(>=10 Sets)
価格
Economic Full Automatic Vertical Food Carton Case Erector For Cardboard Box
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Type: SEALING MACHINE
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: United States, Viet Nam
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons, case, Box
Packaging Material: Plastic, Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 110/220V 50/60HZ 1P
Dimension(L*W*H): L2100mm*W2100mm*H1480mm
Weight: 450 KG
Warranty: 1 Year
Key Selling Points: Easy to Operate
Marketing Type: Ordinary Product
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: PLC
Max Speed: 12 carton/min
Speed: 12 Cases/min
Color: White
After Warranty Service: Video technical support, No service, Online support, Spare parts
Local Service Location: United Kingdom, United States, Viet Nam, Philippines, Australia
After-sales Service Provided: Free spare parts, Field maintenance and repair service, Video technical support, Online support
証明: CE certificate
基本情報
証明: CE certificate
お支払配送条件
Packaging Details: Export standard wooden case
Supply Ability: 100 Set/Sets per Month
製品の説明
Product Description

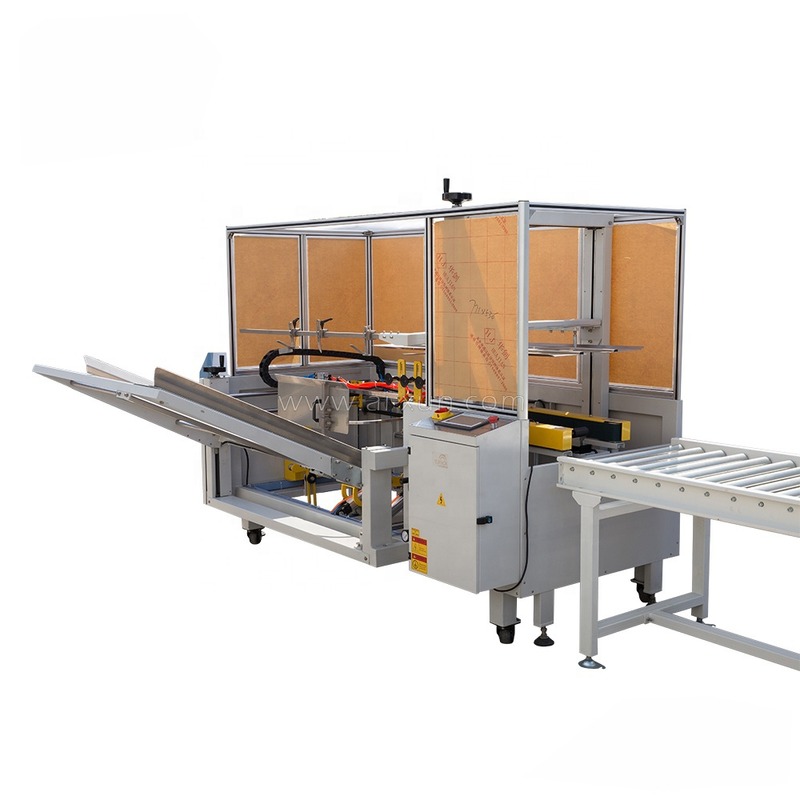

Fully Automatic Vertical Economic Case Erector for Cardboard Box Carton
YPK-4012 case erector can finish the work of carton opening, shaping, folding and sticking adhesive tapes.Equipped with our consistency system, it runs precisely and reliably.This machine provides extremely secure sealing effect, without tape slipping problems.Hot melt glue system is optional.It is widely used with our carton sealer ,carton packer ,weighting system,labeling machine,printing machine ,strapping machine and conveyor system accordingly.
Product Paramenters
Model
YPK-4012
Voltage
110/220V 50/60HZ 1P
Power
200W
Speed
9-12carton/min
Table Height
620mm
Air
6kg/cm²
Applicable Carton
L450*W400*H400mm;L250*W150*H100mm
Tape
W48-75mm
Machine size
L2100*W2100*H1480mm
Machine weight
450kg
Product Advantages

Easy to operate.
YPK-4012 Touch screen setting, simple operation, intuitive interface.



Adopt international electric appliance configuration.
Siemens PLC control, durable, stable operation, long service life and high efficiency.



Adopt the international brand schneider, omron electrical components.
The electrical components are schneider air switch, schneider contactor, omron relay.



Adopt pneumatic components of festo sucker.
Festo suction cup, high working efficiency, long service life.Suckers are made of rubber and can be sucked or dropped without causing any harm.


Taiwan AIRTAC cylinder, solenoid valve.
The cylinder is controlled by solenoid valve, which can accomplish many functions.



Adopt viewable appearance. Can be used stand-alone or connected.
Visual window, easy to check equipment parts fault, easy to clean the equipment, keep the equipment clean and tidy.


More Details of Carton Erector

1.Easy operation,machine can be used individually and combined with the packaging line.
2.Vertical storage,cartons can be added at any time without stopping the machine.
3.Suitable for forming and sealing cartons of the same size.
4.Manually adjust to change the carton sizes(finishing in 2-3minutes).
5.Advanced photoelectricity induction control system.
6.Rationally designed, the forming, folding and sealing process are accomplished simultaneously.
7.Cutter Safety system to prevent hands form stabbed by the cutter.
8.Heavy duty built, both steel and stainless steel types.
9.Equipped with PLC(Siemens) system, saving labor and easy to operate.
10.Adopted international advanced technology, with imported parts and electrical components, this machine
has a stable performance and long life-using.
Custom Options
Recommend Products
Packaging Line Display
Our workshop
Our Services 1.Warranty One year warranty period. 24 hours after sale service response by tel or email. Free warranty parts:motor and control panel. 2.Installation Services Installation services are available with all new machine purchases.we will provide the technical-know how for your operation smooth transition and suport for installing,debugging,operation of the machine.it will indicate you how to use this machine well. 3.Customer's Training Services We can train your staff to use your operation system properly.It mean that we offer customer training,teaching how to use the system most efficiently and safely as well as how to maintrain optimal operational productivity.
4.After Sales Services We offer the preventative maintenance and after sales services.for we strongly feels about the importance of supporting our customer and the product solutions for us.consequently we offer comprehensive maintenence options to prevent equipment issues before they become problems. FAQ
1.Are you manufacturer or trading company? We are a professional manufacturer of packaging machine in Qingdao,China.we have more than 8years experiences. 2.Can you do OEM? Yes,we can do OEM and also can print your logo on machine. 3.Approved CE? Our all machines had approved CE&BV ago.that will do best quality for every customer's. 4.Can you help us contact the shipping agent in your loading port? Of course,we have our own best shipping forwarder who always provide the best services & price to us.And have writen the machine package size and gross weight in production description line. Also no problem check freight yourself.
Company Profile
Qingdao Ausense has been established in 2008, which focus on the planning, R&D and manufacturing of automatic packaging production line. Such as automatic carton packing line, shrinking wrapping line, fully automatic pallet strapping line, conveyor system and soon......
Ausense main brand is YUPACK, All products have passed the CE certification of the European Union; Our productions have beening exported to Europe, North America, the Middle East, Southeast Asia and more than 30 other Countries.
Since 2017, Qingdao Ausense had successfully introduced robots into our end of packaging production line which can effectively integrate into the application of enterprise MES manufacturing execution system, and provide a complete set of automation industry 3.0 to 4.0 transformation and upgrading services.
