CLOTHING Food Crate Packer Case Erector Case Packing Machine for Food Beverage Pharmaceutical Daily Chemical

1 set
MOQ
$80,000.00(>=1 sets)
価格
CLOTHING Food Crate Packer Case Erector Case Packing Machine for Food Beverage Pharmaceutical Daily Chemical
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Warranty: 1 Year
Type: Other
Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Pharmaceutical Factory
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC, Engine, Motor, Pump
Condition: New
Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
Packaging Type: Bags, Bottles, CANS, Cartons, case
Packaging Material: Paper, Plastic, Cartonned Products
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380V/50HZ
Power: 5.5KW
Weight: 1500 KG
Dimension(L*W*H): 4050X2500X1800
Key Selling Points: Multifunctional
Case Packer Usage: Case Packer for pharmaceuticals,food,cosmetics
Case Packer material: for case packing
Case Packer Model: LT-KZX08 Case Packer
Case Packer machine speed: Case Packer machine speed is 1-6 cases/min.
Usage: Overwrapping machine for pharmaceutical food cosmetic
Machine name: Automatic Case Packing machine
Keyword: Case Stacking Packing Robot Palletizer Machine
Function: Carton Packing Sealing
証明: ISO9001
基本情報
証明: ISO9001
Model Number: LT-KZX08 Case Packer
お支払配送条件
Packaging Details: FILM OVERWRAPPING INNER PACKAGE,WOODEN CASE OUTTER PACKAGE
Supply Ability: 100 Set/Sets per Year
製品の説明
Product Description

Automatic Case Packer Machine/Automatic Case Packing Machine for Food,Cosmetic,Pharmaceutials,Chemicals

Product Application

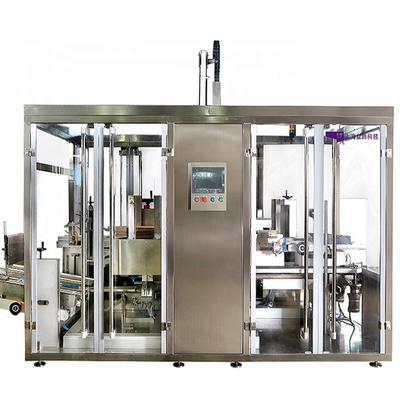

LT-KZX08 Automatic Vertical Case Opening&Packing Machine
1. Machine Packing Type:60/70/90 bottle cartons packed in one Shipper Carton,or according to customer request.

2. Machine Output:2-3cartons/min.

Main device is included:Bottle carton collecting device,case automatic opening device,Bottle cartons robot arm infeeding device,paper sheet robot arm inserting device,SIEMENS control system.

3. Case transferring plate height:550-750mm(According to request)

4. Standard :Normally use Acrylic glass for safety cover,meet CE standard.

 Mechanical parts adopts S.S,Steel with chrome plating,and strong corrossion resistance material with good surface spraying

 Products infeeding&collecting conveyer belt is driven by servo motor,equipped with rooftop chain to load products,equidistance transfer the products.

 Carton staging area can settle 80-120pcs paper pat,can be implemented at any time.

 Auto forming device equipped with servo pneumatic parts to absorb the case and open it,with bottom flapped.

 Case rotating device:adopts pneumatic parts to performance all the actions,using vacuum suction cup and rodless pneumatic parts to transfer and rotate the case into vertical status.

 Mechanical arm infeeding device:using SIEMENS servo motor drives mechanical arm to grab the products and transfer into case,adopt vacuum suction cup to suction products,with quick speed and high precise position.

 Case location adopts pneumatic parts

 main electric cabinet is on machine

 no case&adhesive tape,machine alarm

 case size changeover time is 3-8 minutes.

 Control System:Adopts SIEMENS PLC and TP900 color touch screen,have auto running mode and manual mode,HMI has the whole machine operating function;can display the current and amount packing quantity,and the data can be printed out connecting with printer machine.Fast and accurate setting procedure changeover.Control Panel adopts electro soft touch screen and control button,can input directly and modify the packing parameters,also can storage several packing parameters;Real time monitoring all the running process.All the working process have the detecting sensor.Having the function of autodiagnosis function,when the malfunction happened,machine stop automatically and the alarm light is on,the fault information displayed on the HMI. The whole machine run steadily,and the machine speed can be settled according to the upstream machine.

 Machine meets safety operation&safety running norms and standards.All the lubricating parts are in centralized location,easy operation and all the lubricating parts have protection and no pollution to products.


Technical Parameters
1,Voltage
 Voltage:380V(50HZ 3PH+PE)
2,Air Pressure
0.6Mpa
3, Controlling Voltage
24V DC

4,Packing Speed:
1-6 cases/min.
5,Electrical power
50HZ 380V
6,Power
5.5KW
7,Noise:
< 75dB(A)
8,Shape size
4050×2500×1800mm
9,Machine weight
1500kg

Main Features


LTKZX08 Automatic Vertical Case Opening&Packing Machine

1. Machine Packing Type:60/70/90 bottle cartons packed in one Shipper Carton,or according to customer request.

2. Machine Output:2-3cartons/min.

Main device is included:Bottle carton collecting device,case automatic opening device,Bottle cartons robot arm infeeding device,paper sheet robot arm inserting device,SIEMENS control system.

3. Case transferring plate height:550-750mm(According to request)

4. Standard :Normally use Acrylic glass for safety cover,meet CE standard.

 Mechanical parts adopts S.S,Steel with chrome plating,and strong corrossion resistance material with good surface spraying

 Products infeeding&collecting conveyer belt is driven by servo motor,equipped with rooftop chain to load products,equidistance transfer the products.

 Carton staging area can settle 80-120pcs paper pat,can be implemented at any time.

 Auto forming device equipped with servo pneumatic parts to absorb the case and open it,with bottom flapped.

 Case rotating device:adopts pneumatic parts to performance all the actions,using vacuum suction cup and rodless pneumatic parts to transfer and rotate the case into vertical status.

 Mechanical arm infeeding device:using SIEMENS servo motor drives mechanical arm to grab the products and transfer into case,adopt vacuum suction cup to suction products,with quick speed and high precise position.

 Case location adopts pneumatic parts

 main electric cabinet is on machine

 no case&adhesive tape,machine alarm

 case size changeover time is 3-8 minutes.

 Control System:Adopts SIEMENS PLC and TP900 color touch screen,have auto running mode and manual mode,HMI has the whole machine operating function;can display the current and amount packing quantity,and the data can be printed out connecting with printer machine.Fast and accurate setting procedure changeover.Control Panel adopts electro soft touch screen and control button,can input directly and modify the packing parameters,also can storage several packing parameters;Real time monitoring all the running process.All the working process have the detecting sensor.Having the function of autodiagnosis function,when the malfunction happened,machine stop automatically and the alarm light is on,the fault information displayed on the HMI. The whole machine run steadily,and the machine speed can be settled according to the upstream machine.

 Machine meets safety operation&safety running norms and standards.All the lubricating parts are in centralized location,easy operation and all the lubricating parts have protection and no pollution to products..

Certifications
Detailed Images
Company Introduction
Since its establishment in March 1999, Shanghai Longteng Technology Co., Ltd. has been committed to the research and development of Tube filling and sealing machines and automatic cartoning machines, automatic high-speed blister machines, and intelligent warehousing system. We have accumulated rich experience in production, and cultivated and created a professional technical team consisting of more than 30 people, which makes the company in a leading position in the technical strength competition and is in an invincible position in the fierce market competition. The company strictly implements ISO9001 standard management, strong technical force, complete testing equipment, unique and advanced technology, fully absorbs advanced technology at home and abroad,
and combines with reality to form our unique equipment production process. The products have been used by many well-known enterprises, and the customers have reported good results. The product performance indicators and technical indicators have reached the domestic advanced international advanced level.
Our Service

Pre-Sales Service

* Inquiry and technical consulting support.

* Professional project proposal,machine recommendation and price offer according to customer package requirements.

* View our Factory and machine technical communication.

After-Sales Service

* Provide Training service for how to operate the machine, how to maintenance the machine& machine troubleshooting.

* Engineers available to service machinery SAT and commissioning overseas.

* Supply Spare&wear parts at a discounted price in machine life time.

* Quick response to machine troubleshooting.

Layout&Packaging
Packaging
Size
1450 (L) * 800 (W) * 1250 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
