特徴

仕様

Type: Gluing Machine

Applicable Industries: Manufacturing Plant, Printing Shops

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty of core components: 1 Year

Core Components: Gearbox, Motor, Gear

Condition: New

Application: APPAREL, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type: Belt, Cartons, case, Film

Packaging Material: Metal, Paper, Plastic, Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380v

Dimension(L*W*H): 16.5 *1.4*1.8m

Weight: 6.6T

Warranty: 2 years

Key Selling Points: Competitive Price

After-sales Service Provided: Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Video technical support, Online support

Name: Corrugated Folder Gluer Machine

After Warranty Service: Online support, Field maintenance and repair service

Local ServiceÂ Location: None

証明: CE

基本情報

証明: CE

お支払配送条件

Packaging Details: Plastic wrap film or wooden case for Corrugated Folder Gluer Machine

Supply Ability: 20 Set/Sets per Month

製品の説明

Product Description

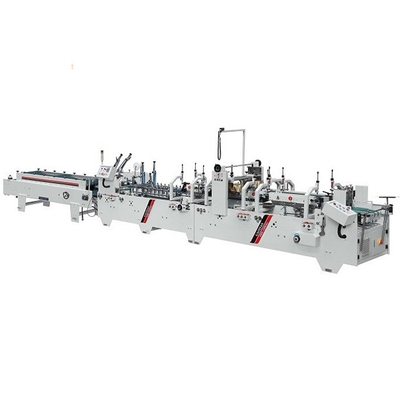

4/6 corner folder gluer machine

Feature:

Automatic 4 & 6 Corner Straight Line Crash Lock Bottom Carton Corrugated Folder Gluer Machine .
The machine is designed for: 4/6 Corner Collapsible, Crash-lock Bottom box, straight line box, and double walls box.
The machine is running steady with strengthened single-side driving system, and it is also easy for maintenance.
The motor is controlled by transducers (inverter) which are available for automatic timing, It’s energy saved and helps work stably.
An electric adjusting system is the machine makes it more conveniently when adjusting the space of carriers which usually based on the double-face tooth rods adjusting system.
Paper is fed by several thick belts with the help of vibration motor, the feeding is continuous, exact and automatic with this system.
Grinders are provided in both sides of machine, to make gluing more stable and firm.
Equipped with 2 sets of gluing system in the machine: top glue system and side glue system. Space adjustment is achieved by the tooth rods.
There is a PLC system controlled by human through touch screen in the machine. A remote diagnosis is equipped to help maintenance (remote controller system in included), and a photoelectric system to control speed in pressing unit(speed in pressing unit is corresponding automatically with the one in feeding unit). Function s are more complete when it’s able to count by accumulated quantitative or partitioned.
Delivery unit is equipped with pressing sponge belts to ensure out-put in a perfect condition. A transverse paper collection table after the pressing unit helps to collect boxes quickly.
The machine is able to make 4/6 corner box or 4-fold crash-lock bottom boxes. In the pre-folding part, the first fold and the third fold can be at 180 degree and 90 degree. The second fold and the fourth fold are molded at 180 degree.
A set of spray gluing system with three guns and a set of servo system are included in this machine.
Belts in the main parts of the machine are imported.
Pre-floding in 135 degree design/plasma device is optional. And special design is available.

Specifications:

1. Main parameter

GS series	650GS	800GS	1100GS
Processed Materials
Carton board max	650 MM	800MM	110MM
Corrugated flute type	A,B,E	A,B,E	A,B,E
Capability
Speed max	400 m/min	400 m/min	400 m/min
Inching speed	10 m/min	10 m/min	10 m/min
Thickness of folded box max	12mm	20mm	20mm
Blank width	650mm	850mm	1100mm
Total power	29.5	31	31.2
Compressed air	6 bar	6 bar	6 bar
Air compressor capacity	10 m³/h	10 m³/h	10 m³/h
Air tank capacity	60 L	60 L	60 L
Dimensions & weight
*LengthWidthHeight*	121.41.8m	16.5 1.41.8m	16.51.71.9m
*LengthWidthHeight*	6T	6.6T	7.6T

2. Gluing box size

box Type	Picture	Model	A Max	A Min	B Max	B Min	C Max	C Min	D Min	E Min
box Type	Picture	Model	mm	mm	mm	mm	mm	mm	mm	mm
6 Corner Collapsible Box		650 Type	650	280	800	120	200	20	90	80
		800 Type	800	280	800	120	200	20	90	80
		1100 Type	1100	280	800	120	200	20	90	80
4 Corner Collapsible Box		650 Type	500	160	650	120	200	20	90	80
		800 Type	800	160	800	120	200	20	90	80
		1100 Type	1100	160	1000	120	200	20	90	80
Crash- lock bottom box		650 Type	650	160	900	90		20	30	40
		800 Type	800	160	900	90		20	30	40
		1100 Type	1100	160	900	90		20	30	40
Straight line box		650 Type	650	75	650	60		35
		800 Type	800	75	800	60		35
		1100 Type	1100	75	800	60		35
Tapered box		650 Type	650	160	650	90		40	35	20
		800 Type	800	160	800	90		40	35	20
		1100 Type	1100	160	1100	90		40	35	20
